What's ultrasonic generator?
Ultrasonic generator, usually called ultrasonic power supply. Its
function is to convert our mains (220V 110V or 380V, 50 or 60Hz)
into a high frequency AC signal that matches the ultrasonic
transducer. From the form of the amplifying circuit, a linear
amplifying circuit and a switching power supply circuit can be
used, and the high-power ultrasonic power source generally adopts a
circuit form of a switching power supply in terms of conversion
efficiency. Linear power supplies also have their own application
range, which has the advantage that the circuit can be not strictly
required.
Matching allows the operating frequency to change continuously and
continuously. From the current situation in the ultrasound
industry, ultrasonic generators are mainly divided into
self-excited and separate excited power supply.
The principle of the ultrasonic generator is to first generate a
signal of a specific frequency by a signal generator, which may be
a sinusoidal signal or a pulse signal. This specific frequency is
the frequency of the transducer, and is generally applied to
ultrasonic in an ultrasonic device. The frequency is 20KHz, 25KHz,
28KHz, 33KHz, 40KHz, 60KHz,70khz, 100KHz.

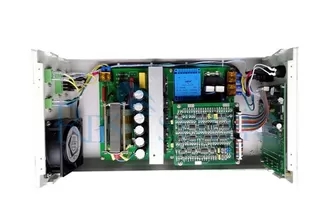

Our ultrasonic generator PCB can be used for non-woven bag making
machine, paper cup sealing machine, three layers bag making
machine, medical cloths making machine, plastic welding machine,
plastic bag making machine,etc.
Ultrasonic welding generator features:
1. High stability: The ultrasonic welding generator adopts
all-digital integrated circuits and imported high-performance
anti-interference processors. It reduces the number of components,
simplifies the hardware structure, and increases the voltage
regulation function to improve the reliability and stability of the
system.
2. Frequency automatic tracking: digital frequency synthesis
technology combined with digital phase-locked loop frequency
tracking composite control technology can eliminate temperature,
static load, processing area, tool wear and other factors drifting
conventional analog regulator is difficult to overcome
shortcomings, is conducive to parameter adjustment. It is
convenient to modify the control scheme and implement various new
control strategies through the modification of the program
software.
3. Strong output: It uses IGBT power module plus its exciting
oscillating circuit structure, so that the output power is more
than 1.5 times that of the traditional self-excited circuit.
4. Amplitude stepless adjustment: the amplitude can be increased or
decreased in the process of adjustment, and can also be fine-tuned,
effectively preventing the size of the plastic parts can be
perfectly welded, and effectively reducing the penetration, burns
and so on. The setting range of defective product is 10%~100%.
5. Intelligent protection and fault alarm prompt: This ultrasonic
generator has mold current too high protection, frequency offset
protection, total output too large protection. When the equipment
fails, the generator will immediately stop working and prompt the
corresponding fault cause until the technician removes the fault.
Application: Plastic, Toys, Electronic products, Non Woven
products, Shore cover, Surgical products, lable, paper cups, mask,
etc.
Our ultrasonic generator PCB advantages
1. DDS and PID high precision frequency control core.
2. Electric constant amplitude control system.
3. Welding amplitude setting range 0% - 100% by 1%.
4. Soft start, setting range 0-999MS, setprecison 1MS.
5. Three self-checking modes.
6. Pressure trigger/Time/Energy welding modes.
7. Six protections.
8. Less space, total weight 1.3KG.
