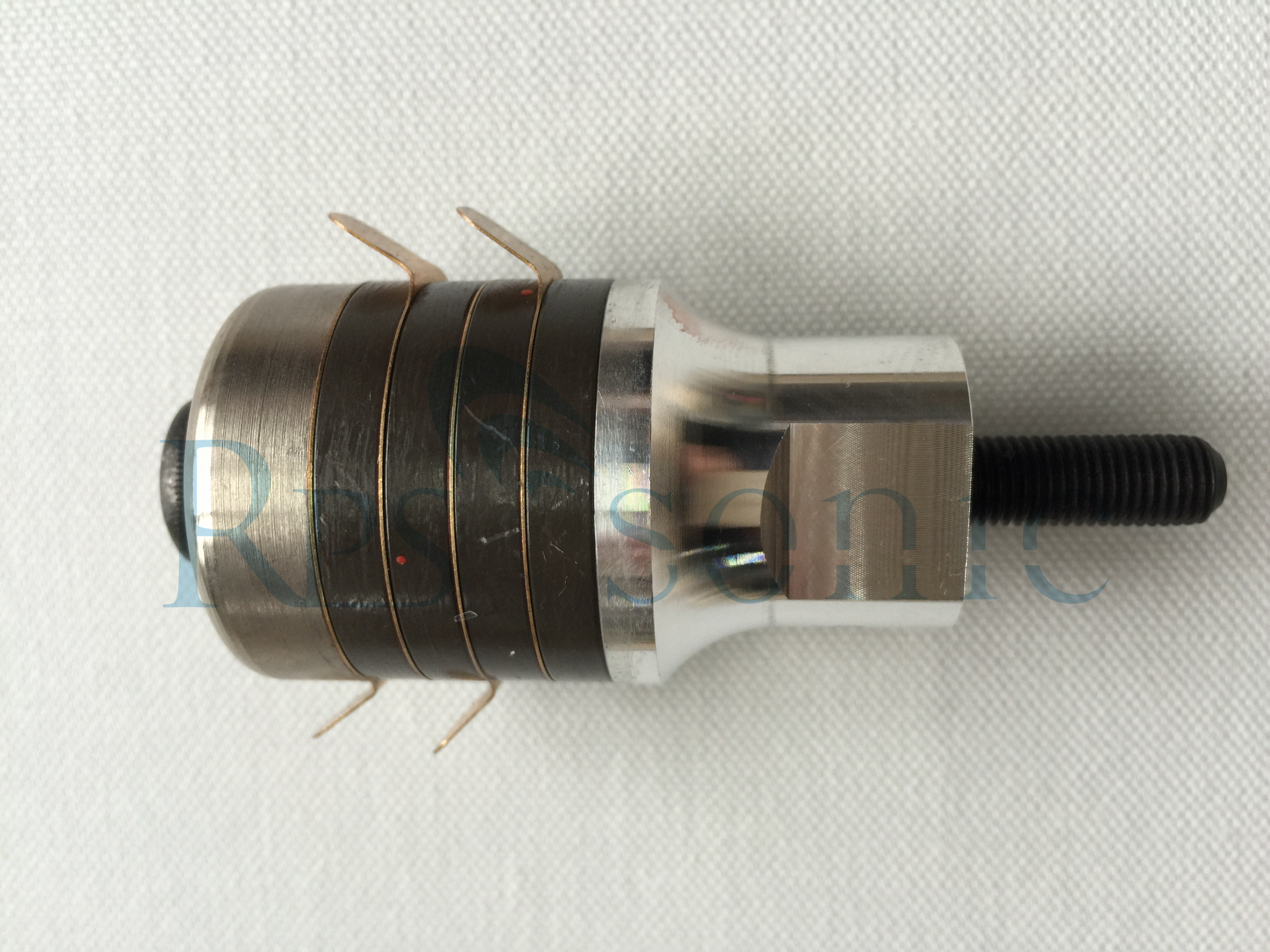

high frequency ultrasonic transducer 40Khz piezo-electric converter

Parameter

To get high frequencies to convert into vibration, a vibrating element with a similar frequency is used. This is also known as a converter or transducer. The piezo-electric converter changes its length as a result of an alternating voltage. In order to increase or reduce the amplitude of the vibrations produced by the converter, a mechanical amplifier or booster is used. The amplification factor of the booster is determined by the ratio between the surface area of ​​the top and bottom. A booster which contact surface with the converter is two times as large as the lower side, will, compared to the converter, double the amplitude.
To transfer the vibration to the product that needs welding, a sonotrode or horn is indispensable. This is a highly specialized and unique part, different for every product. In addition, the sonotrode will ensure that the vibrations are given the desired amplitude.

Features:

◆ High performance: The mechanical Q value is high, and the electro-acoustic conversion efficiency is over 90%.
◆ Large amplitude: The vibrator has a high seismic velocity, which is more than 50% higher than that of a magnetostrictive transducer.
◆ Heat resistance: The use of high-quality materials, good heat resistance, low resonance impedance, and low heat generation.
◆ Strong structure: It is fastened with high quality standard steel bolts and has high reliability.
◆ Electrical parameters: unique production technology, digital equipment processing and assembly, high parameter performance and good consistency.

Why RPS-SONIC TRANSDUCER:

1. Every transducer with a only tracking number, you can check the parameter from our saler no matter how long it passed.

2. All transducer with one year warranty.

3. Specialized in ultrasound for more than ten years

4. Every transducer with 24hours old testing before shipment.

5. Good packing, no packing problem during the 10 years exporting business.

6. Every customer will get purchase records and there are certain rewards after accumulation

Service and shipment

• Warranty one year for transducer.
• You can contact us for technical inquiry any time.
• We supply OEM service for oversea customer, also will keep Confidentiality for our customers.
• We supply customized products service for small quantity also.
• Shipment by FED-EX /DHL/UPS/TNT

In order for an ultrasonic transducer to be used in a welding application the longitudinal vibrations on the end of the transducer need to be amplified and concentrated onto a small surface area. This is accomplished through the use of an amplitude transformer, or horn, manufactured from a titanium or aluminum alloy.

In ultrasonic welding, the horn is brought into contact with one piece of thermoplastic that is to be joined to another piece. Pressure is applied to the two pieces of thermoplastic and the ultrasonic vibrations pass through the first piece to the interface with the second piece. Frictional heat at this interface will melt the material and once the vibrations stop, the temperature drops, and the plastic solidifies the two pieces of plastic will have bonded together.

Using ultrasonic transducers for welding is beneficial because it is:
– Fast and efficient
– Produces a strong bond
– Eliminates the use of solvents and adhesives
– and Heat generated is confined and thus rapidly dissipated

R-Responsibility P-Products S-Service

sale the right products instead of the expensive one

Rps-sonic, consisted with a couple of young people who love ultrasonic very much.The founding members of RPS-SONIC have an average degree of Bachelor's degree or above. They have been in the ultrasonic industry for more than 5 years and have rich experience in ultrasound. The company's business philosophy is: Do not blindly promote any product, find the right product for the customer. So before each order, we will confirm all the details, including application details, equipment conditions, equipment specific information.

And we have the Professional import and export company， HangZhou LanBen Trade Co., Ltd, can export to any country wordwide.

Before year 2012, we only sale second branson / dukane / rinco / herrman/telsonic welding equipment , during these twenty year develop, we find, more and more people have problem with the core part of ultrasonic welding equipment -generator and transducer, so we decided to start our business of transducer and generator of our own transducer and generator. Many of the end user meet the transducer problem, they don’t know why transducer broken, and changing the expensive transducer one by one. Actually, one branson /dukane /rinco transducer can use 10~30 year, even the cheapest transducer can use about 5 years. So there must some reasons if your transducer broken in one year. That’s why we want build Rps-sonic, we need to help more end user to know more about transducer , to use ultrasonic equipment better, to save cost when meet problem.

The same to generator, Unreasonable operation may shorter the use-life of ultrasonic generator. So we have to make technical inquiry before operate ultrasonic welding machine. The key point of ultrasonic machine is resonance, only keep every part in resonance can make the system in best work environment.

Till now , we still have a lot of Branson /dukane/ rinco/ herrman telsonic welding machine, so that we can confirm every transducer/generator we made can matching to the original machine.

Of course we can make the transducer/generator replace for Branson /dukane/ rinco/ herrman telsonic welding machine, we can also make transducer/generator for any application of your ultrasonic equipment. We supply OEM service for oversea customers, we already have OEM customer in USA and German.

If you have any problem in ultrasonic area, welcome contact Rps-sonic.
