Digital Generator Wide Spray Type Ultrasonic Atomization Nozzle For Flux Spraying 50Khz 100W

50Khz 100W Ultrasonic Atomization Spraying Equipment For Glass Spraying With Digital Generator

50Khz High Frequency Ultrasonic Atomization Nozzle for antimicrobial coatings

Paramater

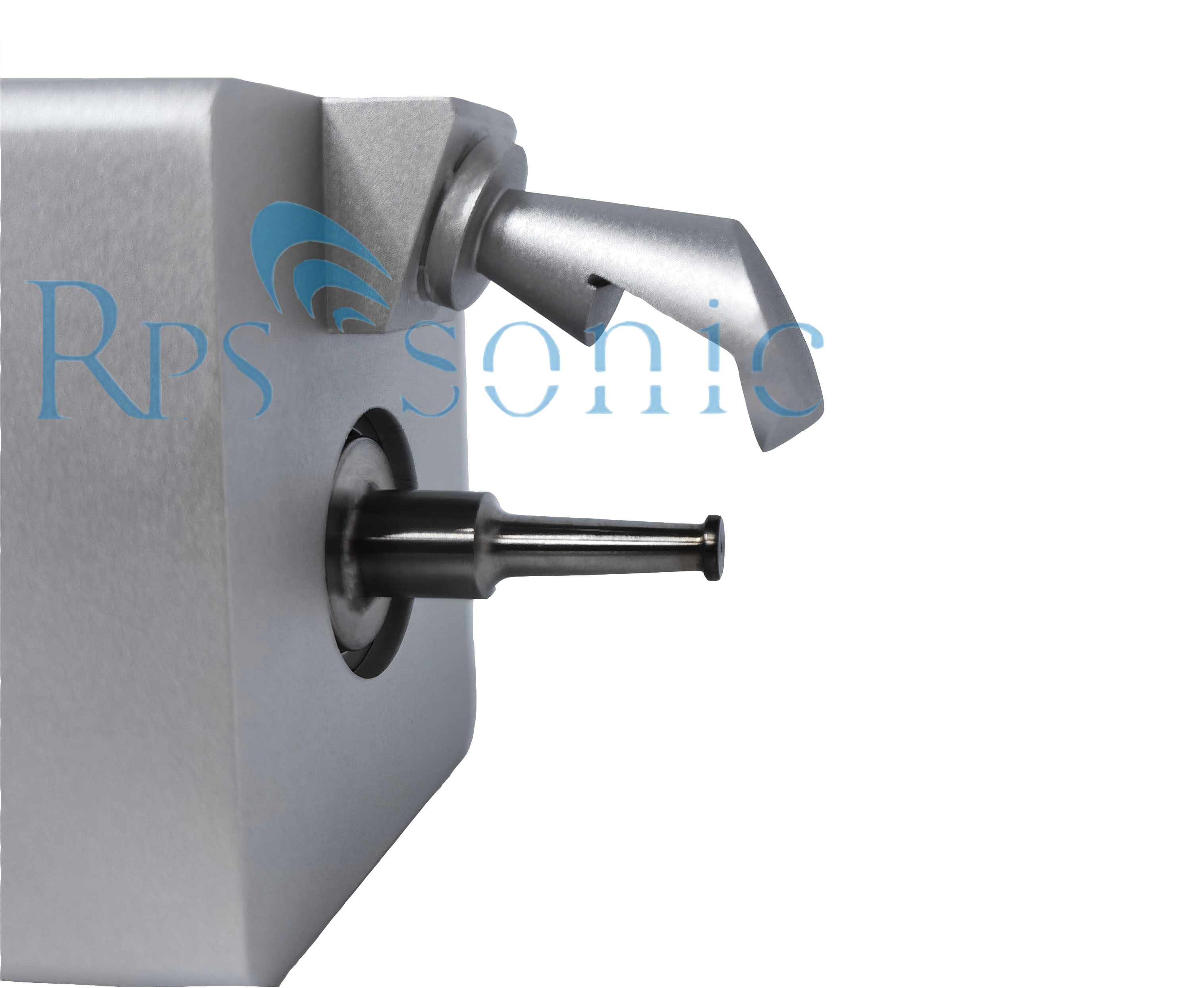

The wide spray type ultrasonic nozzle is an ultrasonic atomization nozzle with a wide spraying area. It adopts ultrasonic atomization nozzle technology, and the carrier gas is dispersed and turned through a special flow channel design, so that the liquid mist after ultrasonic atomization is sprayed in a fan shape, thereby widening the spray width of the ultrasonic nozzle. Due to the large spray width of the wide spray type ultrasonic nozzle, it is mainly suitable for various medium and large area spraying applications. It complements the Dongfang Jinrong gathering type ultrasonic nozzle and can be used for almost all spraying requirements of different planes.

The typical application of K series ultrasonic nozzles is fuel cell spraying, that is, membrane electrode spraying in proton exchange membrane fuel cells. The catalyst (such as platinum-carbon catalyst) dispersion is ultrasonically atomized and sprayed on the proton exchange membrane to form a uniform and dense membrane electrode. . Another important advantage of the wide-spray ultrasonic nozzle is that it can be combined in multiple groups in parallel to obtain a larger spraying width. In theory, the continuous accumulation of the number of nozzles can achieve a spraying range of any width, one 30-group wide-spray ultrasonic The nozzle array of the nozzle can achieve a spraying width of up to 3-4 meters. The nozzle array composed of multiple sets of wide spray ultrasonic atomizing nozzles can be applied to large-area glass spray coating, non-woven fabric and textile spraying, metal plastic sheet, etc., such as AR antireflection coating, heat insulation film coating, Super-hydrophobic coating spraying, flux spraying, etc.

Characteristic

Large width spraying, spraying width: 40-150mm

Uniform coating: uniformity>95

Saving raw materials: the utilization rate of raw materials is as high as 85%, which is 4 times that of traditional two-fluid spraying

High precision of coating thickness control: It can prepare coatings from 20 nanometers to tens of micrometers, and accurately control the coating thickness

Atomized particles are uniform, which can achieve ultra-low spray flow

Can achieve intermittent or continuous spray

Not easy to block the nozzle

Anti-corrosion sprinkler

Can achieve high precision and high controllability spraying

Application

Spraying in the field of new energy: fuel cells, thin-film solar cells

Spraying in the glass field: anti-reflection AR, hydrophilic and hydrophobic coating, conductive layer, etc.

Spraying in the electronic field: flux, photoresist, conformal paint

Non-woven fabric and textile spraying

Spraying in the biomedical field

Conductive film: conductive films such as carbon nanotubes, graphene, nano silver, etc.
