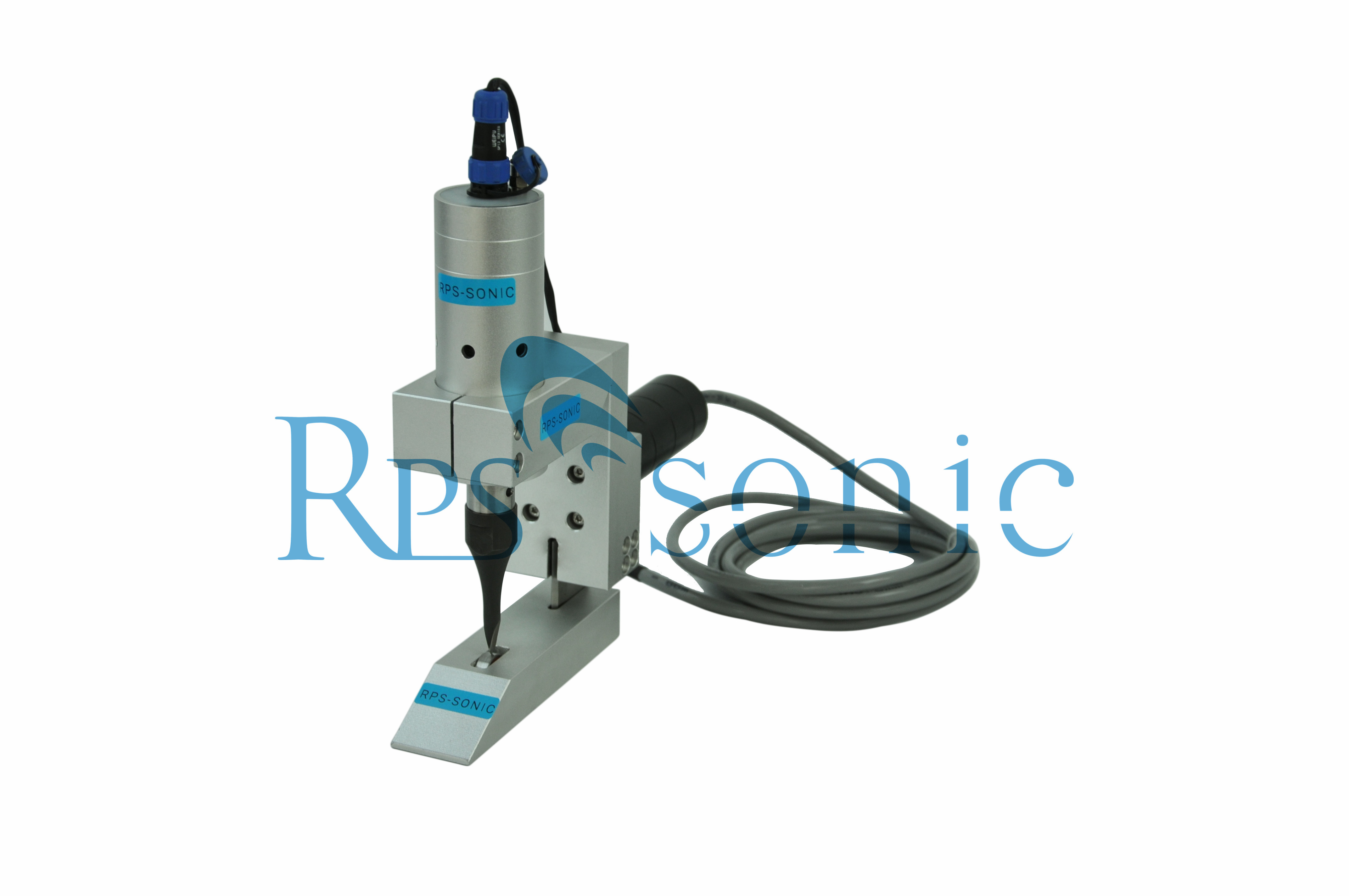

Nonwoven Welding 40khz 500w Ultrasonic Textile Cutting Machine

Parameter

An Overview
It is amazing to see what ultrasonic energy can achieve in joining, cutting, patterning, and quilting on synthetic fabrics. These and more operations are done without the use of thread or adhesives and at speeds much greater than can be reached with sewing machines - as much as four times the speed!
How does it work? As the fabric passes under the machine's horn, ultrasonic vibration causes the materials to heat up and fuse together. Without any additional glue or heat, the seam is finished. When used with cutting edge tooling, the vibration cuts through the fabric and seals the edges of the cut to eliminate any fraying at the edges.
Sewing machine operators quickly adjust to this threadless sewing technique. Modular systems are available for integration into automated textile manufacturing equipment and web handling equipment.
Plunge welding or cutting is accomplished by placing the material over a fixed anvil and having the horn or tool descend to the fabric. This approach is used to punch holes, such as buttonholes, to cut fabric strips to preset lengths, or to join pieces together.

Principles of Operation
Every ultrasonic unit contains the following five elements:
1. A POWER SUPPLY which takes line power at 50 or 60 cycles and changes it to high ultrasonic frequency at 20,000 cycles per second or even higher.
2. A CONVERTER which contains piezoelectric crystals which change the incoming high frequency electrical signal to mechanical vibration.
3. A BOOSTER which transmits the vibration energy and serves to increase its amplitude in much the same way as volume control on a radio.
4. A HORN which delivers the vibration energy to the plastic film or fabric to be worked on.
5. AN ANVIL or backup part which supports the work piece and, in the case of textiles, takes the form of a pattern wheel or non-rotating cutter wheel depending on the application.
The ultrasonic vibration is transmitted from the horn to the material. developing frictional heat where they touch. This momentary heat fuses the edges of the fabric. If double plies are present, the plies join together. Where a cutting edge is used on the anvil, the fabric is cut through and the edges sealed at the same time.

Materials
Materials may be 100 % synthetic or blends with up to 40 % natural fibers. Nonwovens, woven, stretch woven or knit materials can be bonded and cut or slit. Acrylics, acetates, polyester, nylon, polyethylene, polypropylene, spandex and PVC are all suitable for bonding or cutting. In general, the higher the synthetic content, the easier it is to cut and seal with ultrasonic energy.
Some fabrics may be directional; that is, th
e fibers in one direction have a different composition than the fibers in the other direction. This may lead to different results depending on the direction of the cut and seal.

Unrivaled attribute: Continuous welding force monitoring!

ALL welding parameter are measured and regulated “speed, energy AND force”

Innovative dual roller system: Cutting wheel can be activated by motor

New: Versatile platform for various options:

- motorized puller

- simple parallel puller

New touch screen (simple handling with user-friendly icons)

20khz new rotray horn design , more powerful than 35Khz.

Digital generator, frequency auto tracking.

R-Responsibility P-Products S-Service

sale the right products instead of the expensive one

Rps-sonic, consisted with a couple of young people who love ultrasonic very much.The founding members of RPS-SONIC have an average degree of Bachelor's degree or above. They have been in the ultrasonic industry for more than 5 years and have rich experience in ultrasound. The company's business philosophy is: Do not blindly promote any product, find the right product for the customer. So before each order, we will confirm all the details, including application details, equipment conditions, equipment specific information.

And we have the Professional import and export company， HangZhou LanBen Trade Co., Ltd, can export to any country wordwide.

Before year 2012, we only sale second branson / dukane / rinco / herrman/telsonic welding equipment , during these twenty year develop, we find, more and more people have problem with the core part of ultrasonic welding equipment -generator and transducer, so we decided to start our business of transducer and generator of our own transducer and generator. Many of the end user meet the transducer problem, they don’t know why transducer broken, and changing the expensive transducer one by one. Actually, one branson /dukane /rinco transducer can use 10~30 year, even the cheapest transducer can use about 5 years. So there must some reasons if your transducer broken in one year. That’s why we want build Rps-sonic, we need to help more end user to know more about transducer , to use ultrasonic equipment better, to save cost when meet problem.

The same to generator, Unreasonable operation may shorter the use-life of ultrasonic generator. So we have to make technical inquiry before operate ultrasonic welding machine. The key point of ultrasonic machine is resonance, only keep every part in resonance can make the system in best work environment.

Till now , we still have a lot of Branson /dukane/ rinco/ herrman telsonic welding machine, so that we can confirm every transducer/generator we made can matching to the original machine.

Of course we can make the transducer/generator replace for Branson /dukane/ rinco/ herrman telsonic welding machine, we can also make transducer/generator for any application of your ultrasonic equipment. We supply OEM service for oversea customers, we already have OEM customer in USA and German.

If you have any problem in ultrasonic area, welcome contact Rps-sonic.
