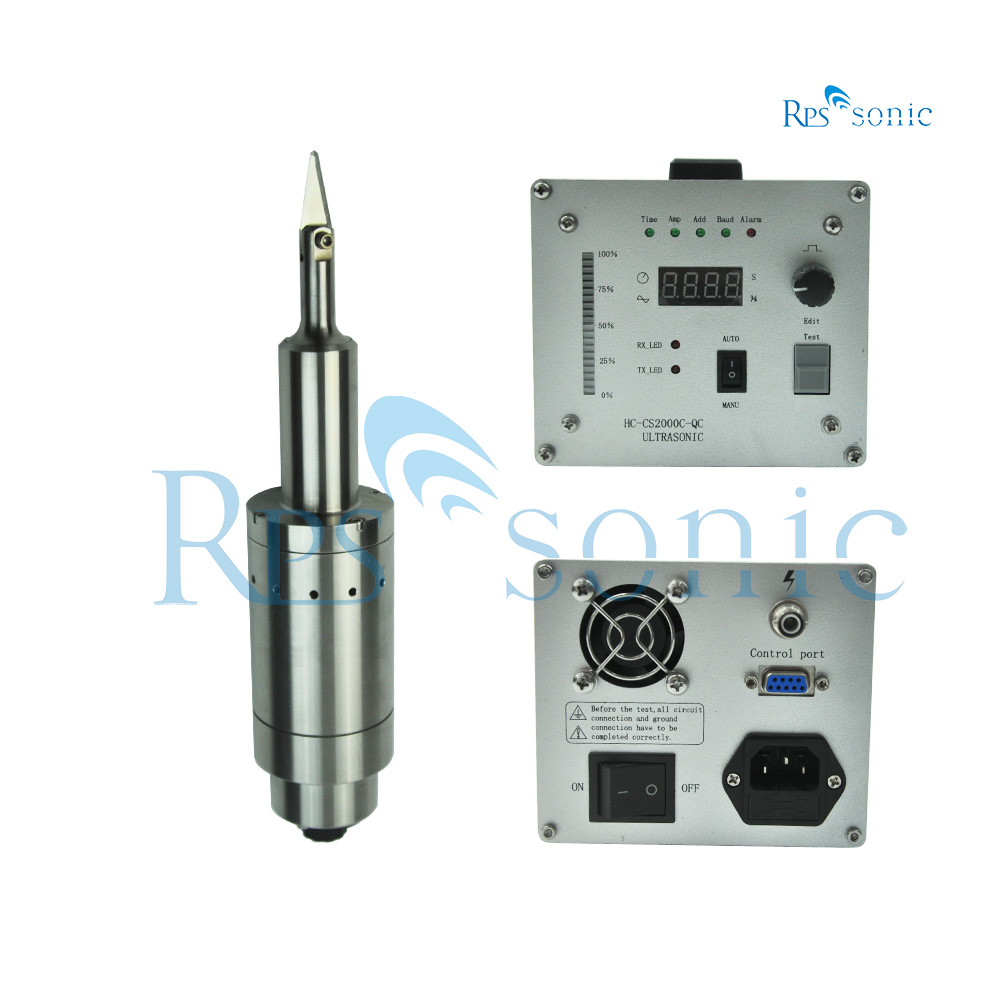

30Khz Robot Arm Ultrasonic Cutting Blade For Plastic/Nylon/Blanket Cutting

30Khz Ultrasonic Cutting Device Mounted On The Robot Arm For Cutting Plastic

Description

Ultrasonic cutting knives use the principle of generating heat energy instantly by ultrasonic vibration and friction.
The mold or cutter contacts the ultrasonic vibration surface under the pressure of the cylinder to achieve the cutting effect; adopts PLC
The console, automatic feeding, electric eye tracking and scanning, and the use of sensors to track the cutting position of the trademark,
And equipped with anti-static device, can remove a large amount of static electricity generated when cutting off.

A brand-new clamping structure is adopted, so that the blade can be replaced, which greatly reduces the cost of use.
This product has now entered the stage of small batch trial production, and has been recognized and praised by trial users.
This product is mainly used in the cutting of plastic parts, rubber cutting, trimming of injection molding materials, and cutting of shoe sole materials.

The replacement blade ultrasonic cutting shell is made of stainless steel, which can be used to cut thermoplastic resin plates, sheets, films and laminates, carbon fiber composite materials, polyethylene fibers, carbon or glass fiber (GFRP) molded products, rubber, and vulcanized latex , Non-vulcanized latex.

Advantages of ultrasonic cutting

High stability: When the ultrasonic generator is working, it generates 40KHz electromagnetic vibration, which is transformed into mechanical vibration and transmitted to the cutting knife and the material to be cut. The slitting is performed mechanically, so there is no need for sharp cutting edges, the blade wear is small, and at the same time The cutter head can be replaced by yourself.
No pollution: When the ultrasonic knife is cutting, the temperature of the knife head is lower than 50 ℃, so smoke and odor will not be generated, which eliminates the danger of injury and fire during cutting.
Neat cutting: Since the ultrasonic is cut by high-frequency vibration, the material will not adhere to the surface of the blade, and only a small amount of pressure is required during cutting. It will not deform and wear for fragile and soft materials. The fabric will be automatically sealed at the same time. Will cause edge collapse.
The operation is simple: the cutting knife is connected to the ultrasonic generator, the generator is connected to the 220V mains, and the switch can be turned on to cut. It supports hand-held cutting and is equipped with an air-cooled interface.
Wide range of applications: all kinds of textile materials and plastic sheets can be ultrasonically cut, such as natural fibers, synthetic fibers, non-woven fabrics and knitted fabrics can be ultrasonically cut.

Parameter

Pictures

R-Responsibility P-Products S-Service

sale the right products instead of the expensive one

Rps-sonic, consisted with a couple of young people who love ultrasonic very much.The founding members of RPS-SONIC have an average degree of Bachelor's degree or above. They have been in the ultrasonic industry for more than 5 years and have rich experience in ultrasound. The company's business philosophy is: Do not blindly promote any product, find the right product for the customer. So before each order, we will confirm all the details, including application details, equipment conditions, equipment specific information.

And we have the Professional import and export company， HangZhou LanBen Trade Co., Ltd, can export to any country wordwide.

Before year 2012, we only sale second branson / dukane / rinco / herrman/telsonic welding equipment , during these twenty year develop, we find, more and more people have problem with the core part of ultrasonic welding equipment -generator and transducer, so we decided to start our business of transducer and generator of our own transducer and generator. Many of the end user meet the transducer problem, they don’t know why transducer broken, and changing the expensive transducer one by one. Actually, one branson /dukane /rinco transducer can use 10~30 year, even the cheapest transducer can use about 5 years. So there must some reasons if your transducer broken in one year. That’s why we want build Rps-sonic, we need to help more end user to know more about transducer , to use ultrasonic equipment better, to save cost when meet problem.

The same to generator, Unreasonable operation may shorter the use-life of ultrasonic generator. So we have to make technical inquiry before operate ultrasonic welding machine. The key point of ultrasonic machine is resonance, only keep every part in resonance can make the system in best work environment.

Till now , we still have a lot of Branson /dukane/ rinco/ herrman telsonic welding machine, so that we can confirm every transducer/generator we made can matching to the original machine.

Of course we can make the transducer/generator replace for Branson /dukane/ rinco/ herrman telsonic welding machine, we can also make transducer/generator for any application of your ultrasonic equipment. We supply OEM service for oversea customers, we already have OEM customer in USA and German.

If you have any problem in ultrasonic area, welcome contact Rps-sonic.
